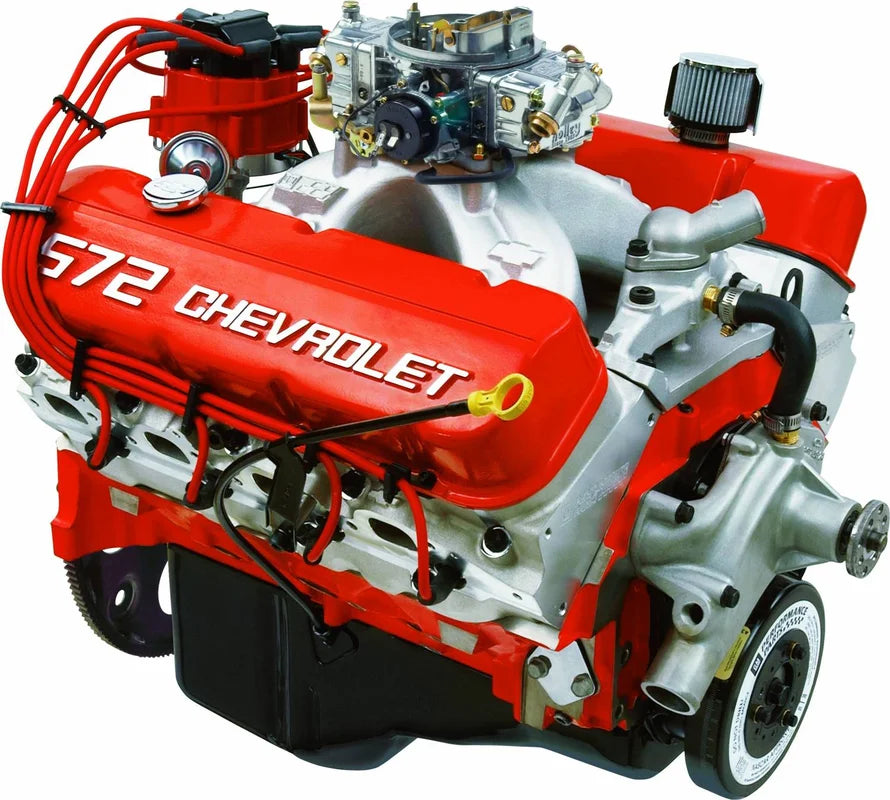

ZZ572 - 621hp Big Block Chevy Crate Engine 19331583 572ci

Description Call or email for latest availability. CHEVROLET PERFORMANCE’SBADDEST BIG-BLOCK STREET ENGINE Proving the adage there’s no replacement for displacement, the ZZ572/620 is the ultimate expression of Chevrolet Performance’s engineering capability, wrapped up in a soul-stirring combination of performance and attitude. We build the ZZ572/620 with huge 4.560-inch bores and a 4.375-inch stroke to help it deliver 621 hp and a stunning 645 lb.-ft. of grunt!

Strength comes from a latest-generation tall-deck block casting with four-bolt main caps and an all-forged rotating assembly, while high-flow aluminum rectangular-port cylinder heads with massive 310cc intake passages, 118cc raised exhaust ports and 118cc combustion chambers process tremendous airflow. A hydraulic roller camshaft with incredible 0.632/0.632-inch lift and 254/264-degree duration specifications optimizes the airflow volume enabled by the large-port heads.

Chevrolet Performance delivers this Big-Block with an 850-cfm carburetor, HEI distributor, aluminum water pump and distinctive orange powder-coated valve covers that proudly proclaim the 572 legend. TECH SPECS Part Number:19331583 Engine Type:Chevy Tall-Deck Big-Block V-8 Displacement (cu in):572 Bore x Stroke (in):4.560 x 4.375 Block (P/N19212195):Cast-iron with 4-bolt main caps Crankshaft (P/N 88961554):Forged steel Connecting Rods (P/N88962926):Forged steel, shot peened Pistons (P/N88962925):Forged aluminum Camshaft Type (P/N19210721):Hydraulic roller Camshaft Lift (in):.632 intake / .632 exhaust.

Camshaft Duration (@.050 in):254° intake / 264° exhaust Cylinder Heads (P/N19331429):Aluminum rectangular port, 118cc chambers Valve Size (in):2.250 intake / 1.88 exhaust; stainless steel Compression Ratio:9.6:1 Rocker Arms (P/N19210726):Aluminum roller style Rocker Arm Ratio:1.7:1 Distributor (P/N88961867):HEI Carburetor (P/N19170095):850-cfm Water Pump (P/N19168602):Aluminum, short-style Spark Plugs and Wires:Included Flexplate (P/N12561217):14″ Recommended Fuel:Premium pump Ignition Timing:36° Total at 4,000 rpm Maximum Recommended rpm:6,000 Balanced:Internal Intake Manifold (P/N88961161):Single Plane INSTALLATION NOTES.

• Due to crate fitment, the carburetor is shipped uninstalled and needs to be installed by an engine installer • Clutch linkage boss is now drilled and tapped. When using cast-iron exhaust manifolds, lower head bolts may need to be replaced with bolts with shorter heads, for clearance • Requires addition of starter and fuel pump (not included) • Gen VI tall-deck block has machined mechanical fuel pump boss • Comes with a 14″ automatic transmission flexplate. Requires internally balanced flywheel for manual transmission applications • Designed for pre-1976 street vehicles or any off-road vehicle • Not intended for marine applications.

• You do have a strong transmission and rear axle, don’t you? NOTE:Distributor with melonized steel gear MUST be used with long-blocks and Partial engines with steel camshafts, or engine damage will occur.
